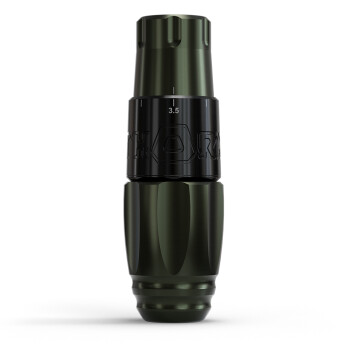

Because the new Stigma Rotary Tattoo Pen Thorn 2.0 gives every tattoo artist the possibility to adjust the stroke while tattooing, the Thorn 2.0 is the perfect all-rounder for smooth shading, rich fills and strong outlines.
To set a different stroke length, simply hold the machine by the ring in the center (where the logo is engraved) and rotate the top.
There are 5 laser engraved markings on the body to guide the stroke length:
4.5 mm, 4.0 mm, 3.5 mm, 3.0 mm, 2.5 mm.
Note that the stroke length can be set anywhere between these values.
Finally, the protected RCA jack is gold-plated and the handle is designed to ensure that the Thorn 2.0 fits snugly in your hand and prevents the pen from rolling down. With its comfortable shape and ergonomic grip, low noise level and vibration, the Thorn 2.0 allows the artist to effortlessly perform flawless work all day long.
Notes on maintenance and sterilization:
- Do not disassemble the pen.
- The machine is pre-lubricated and does not require lubrication.
- Do not use oil for lubrication!
- Only the handle of the machine can be autoclaved.
- Only steam autoclave sterilizers are recommended.
- After autoclaving the handle, only a touch of synthetic grease (e.g. Super Lube) should be applied around the internal thread of the handle and/or on the O-rings of the machine body to ensure optimal and smooth operation.
- The remaining parts (machine body) should only be disinfected from the outside with a soft cloth and a mild disinfectant.
Features:

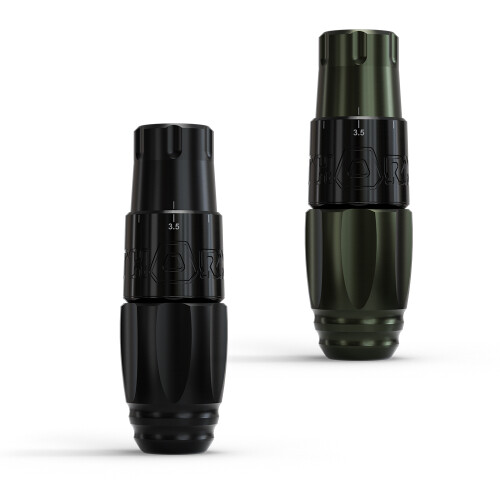

- Color: Black or Army Green
- 8 watt motor
- Voltage range: 4.0 - 10.0 V (55 - 160 Hz)
- Stroke length continuously adjustable: 4.5 mm, 4.0 mm, 3.5 mm, 3.0 mm, 2.5 mm
- needle depth infinitely variable: 0 - 4.5 mm
- Connection: gold-plated and protected RCA socket
- All-rounder: suitable for shading, filling and outlines
- Ergonomic shape
- Anti-roll design
- Compact and lightweight
- Low vibration
- Compatible with all popular Tattoo Needle modules
- Manufacturer warranty: 12 months
Machine weight and dimensions:
- Length (without module): 102 mm
- Weight: 164 g
- min. - max. diameter: Ø 25 mm - Ø 34 mm
Scope of delivery:
- 1x Stigma Rotary Tattoo Pen Thorn 2.0
- 1x Quick start guide
Suitable connection cables and power supplies can be found in our store.
