The new Swiss X2 high performance motor with a power of 6 watts and an energy efficiency of 86% has been specially manufactured for the X2 models and is suitable with all standard modules known on the market.
The standard eccentric has been replaced by a new eccentric with 4 mm stroke made of stainless steel to improve durability and work performance. This eccentric with 4 mm is standard. The cams can be interchanged as before.
Easy changeover between needle bars and needle modules:
When using modules, the stay-up spring must be removed to avoid stressing the motor and to function properly. The X2 version has an opening in the frame that allows quick access to the stay-up spring.
For the correct conversion we recommend the Ink-Machine Precision Tool Kit.
The new cap with built-in damper allows efficient and rattle-free use of the entire 3-rev settings.
The X2 models have made several improvements in component materials and precision.
Features:

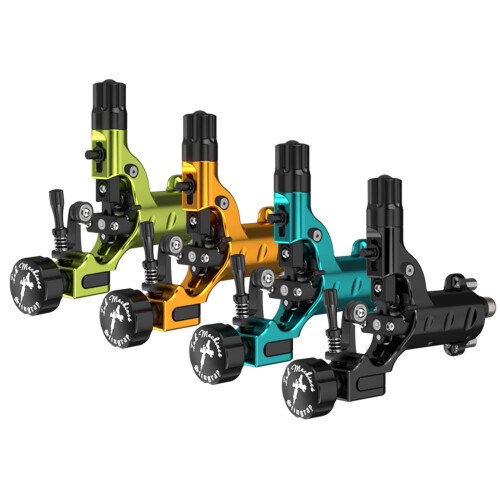

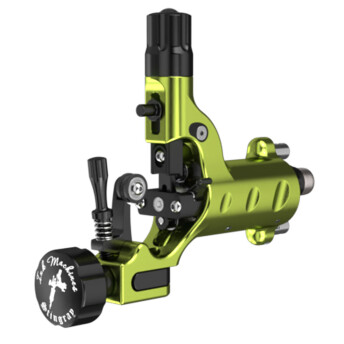

- Available in a variety of colors
- Swiss high performance motor
- Working power: 6 watts
- Material: 7075 aluminum
- Operating voltage: 0 - 13 Volt DC (max. 13 Volt DC)
- Speed range stitches / sec: 0 - 8,000 rpm 0 - 130 / sec
- stroke: 4 mm
- needle protrusion: 0 - 2 mm
- Machine connection: RCA and clipcord (max. clipcord end diameter Ø1.6 mm)
- Compatible with all standard Tattoo Needle modules
- Accepts all standard grips and tubes
- Low vibration
- Compatible with power supplies: 0 - 13 V
- Wireless connection possible with RPS-600
- Ergonomic design
- Very quiet
- Does not require rubber bands
- Eccentrics are easily interchangeable (2.6 mm; 3 mm; 3.5 mm; 4 mm)
- Perfect for lining and filling
Machine dimensions and weight:
- Weight: 85 g
- Dimensions: 95 mm x 21 mm x 77 mm
- Maximum tube Ø: 8 mm
Scope of delivery:
- 1x Stingray X2
- 1x Machine oil
- 1x Spring for needle module (mounted)
- 1x Standard spring
- 1x Stay-Up spring (mounted)
- 1x Damper (mounted)
- 2x Allen key (0.9 mm and 1.5 mm)
